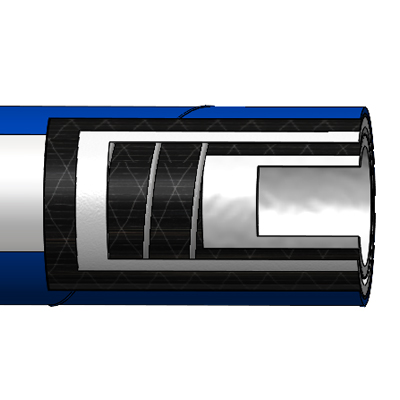

DKR-FLX Hose

DKR-FLX Hose

An extremely flexible hose

Rubber Fab’s DKR-FLX is an extremely flexible hose designed specifically for applications delivering chemicals in the food, cosmetic, and pharmaceutical industries. DKR-FLX exhibits excellent resistance to high temperature SIP cycles. This hose is comprised of a fluoropolymer inner liner that guarantees low permeability with minimal to no risk of contamination.

Smoothbore for uninterrupted flow helps eliminate foreign material buildup

TUBE: Smooth, white fluoropolymer compound

COVER: Smooth blue synthetic rubber

REINFORCEMENT: High tensile synthetic plies, embedded a/s helix wire

TEMPERATURE: -26ºC to 150ºC

Resources Additional Specs
Cover

Cover

Smooth blue synthetic rubber, glossy finish, easy to clean, abrasion, ozone and aging resistant.
Reinforcement

Reinforcement

High tensile synthetic plies, embedded a/s helix wire.
Tube

Tube

White fluoropolymer compound, smooth, compliant with FDA 21 CFR & USP class VI (87) (88)
Smooth Bore

Smooth Bore

Smooth bore for uninterrupted flow helps eliminate foreign material buildup and bacterial contamination – allowing easy cleaning.
Part # Hose ID Inch Hose OD Inch Bend Radius Inch Max Working Pressure (@ 70°F/20°C) PSI Vacuum Rating (@ 70°F/20°C) in. Hg. Weight per Foot
08RFDKRFLX 0.50 1.00 2.60 1300 27 0.36
12RFDKRFLX 0.75 1.25 3.80 945 27 0.59
16RFDKRFLX 1.00 1.50 5.00 800 27 0.74
24RFDKRFLX 1.50 2.05 7.50 565 27 1.11
32RFDKRFLX 2.00 2.56 10.05 435 27 1.54

Additional Specs

  • Full traceability
  • Resistant to steam sterilization (Multiple cycles at 276°F for max. 30 min.)
  • Extremely flexible
  • Low permeability
  • Food
  • Beverage
  • Fine chemicals
  • USP Class VI pharmaceutical applications
  • USP CLASS VI (87)(88) (TUBE MATERIAL)
  • FDA 21 CFR 177.2600 (TUBE MATERIAL)
  • EC 2023/2006 (GMP)
  • EC 1935/2004
  • EC 1907/2006 (REACH)
  • Free from Phthalates, BPA, PAH & ADI
